PM Arc Fusion Splicer Model: FSM-20PMII Manufacturer: Fujikura Ltd. Contact Information:   Faculty Contact:   Dick Selfridge   Staff Contact:   Don Dawson   Student Contact:   Earl Parsons

Expand All
Compress All

1. General Description
   1. This arc fusion splicer is used primarily for polarization maintaining optical fibers. If you want to fuse two fibers and do not care about polarization, use the other fusion splicer found in the lab as it is much easier to use. This fusion splicer has stages that move in the x, y, z, and theta directions.
2. Power On

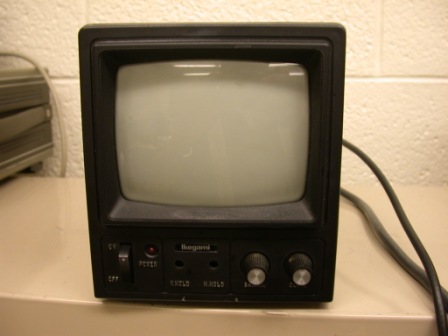

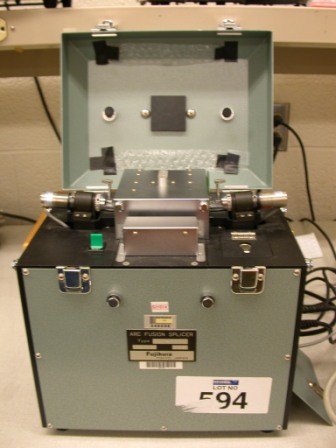

   1. To power on the fusion splicer first flip the power switch on the main body, the small television, and the controller as shown below.
   2. Once when the main body and the controller are both powered, you will hear a trio of beeps.
3. Placing the Fibers
4. Selecting the Splice Mode
   1. The splice mode you select will depend on the type of fiber you want to splice.
   2. P1 PANDA fiber
   3. P2 PANDA fiber
   4. P3 PM fiber (not PANDA)
   5. SM Single mode fiber
   6. MM Multimode fiber
5. Discharge Conditions
   1. Display the splicing conditions and scroll through them by pressing the CONDITION key. The change a value type the value with the numeric key pad and then press ENT.
   2. If the value does not appear then it is out of range.
   3. Conditions:
   4. ARCPWR - Discharge current in units of bits. The range is 0-31. Discharge current = 10 + .3*(ARCPWR) mA
   5. ARCTIME - Discharge time. The range is 0-65000 ms
   6. FORWARD - The time the left fiber moves during splicing. This is called stuffing. The range is 0-1000 ms.
   7. PREFUSE - The preheating time before stuffing. The range is 0-1000 ms.
   8. GAP - Distance between the fiber ends before splicing in units of lines. 1 line = two microns. The range is 6-32 lines.
   9. ECF - Eccentricity correction function. Used in core axis aligning. Range is 0.00-0.99
   10. ANGLE - Rotational angle after theta axis aligning. The range is 0-360 degrees.
   11. PMALIN - In P3 mode, determines if the angle should be a max or min.
   12. Optional conditions:
   13. ECF - Enables eccentricity correction function
   14. DATA - Displays axis offset data on monitor
   15. LITARC - A short perfuse arc is created to eliminate dust on the fiber ends
   16. PAUSE1 - Pauses after gap setting. Press SET to restart
   17. PAUSE2 - Pauses after aligning press SET or ARC to resume
   18. EFTCHK - Measures and evaluates the cleaves of both fibers before proceeding
   19. ARCCOUNT- Number of arcs since the count was reset
6. Controller

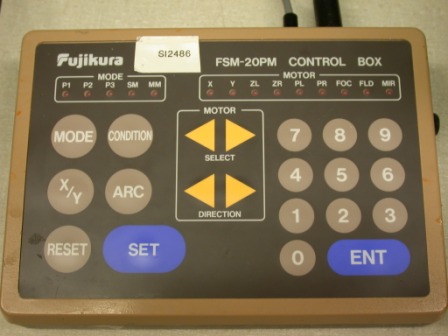

   1. The controller is used to control the splicer. These are the functions available:
   2. MODE key Choose between SM, MM, PM fibers
   3. Condition key Displays the fusing conditions
   4. Motor select key Toggles between the motors
   5. X/Y key Toggles view between the X and Y cameras
   6. Reset key Resets the motors to their "home" conditions. If pressed again, the motors will fully rotate and reset.
   7. ARC key This triggers the arc
   8. Set Key This begins automatic gap setting
   9. Motor direction key Drives the motors in a given direction

Manual Motor Operation

Motor	Left Arrow	Right Arrow
X (on X field)	Right fiber fall (XF)	Right fiber rise (XR)
Y (on Y field)	Left fiber fall (YF)	Left fiber rise (YR)
ZL	Left fiber back (ZLR)	Left fiber forward (ZLF)
ZR	Right fiber back (ZRR)	Right fiber forward (ZRF)
PL	Left fiber rotation back (PLR)	Left fiber rotation forward (PLF)
PR	Right fiber rotation back (PRR)	Right fiber rotation forward (PRF)
FOC	Focus far (FAR)	Focus near (NEAR)
FLD	Fibers fall	Fibers rise
MIR	Positions camera	Positions camera

Over Run Indications

Over Run	Causes	Solutions
XF, XR, YF, YR	The is too much dust in the v-groove, the fiber is detached from the v-groove, the rubber jacket is not removed.	Clean the v-groove, reposition the fiber, or recleave.
FOCUS NEAR, FOCUS FAR, FIELD UP, FIELD DOWN	The fiber is not properly set, the fiber is too dusty, or the automatic focus is not working properly.	Replace the fiber, clean the fibers, or press reset.
ZLF, ZRF	The fiber is too short or the fiber is detached from the v-groove.	Recleave the fiber and reposition.
ZLR, ZRR	The fiber cannot move back any farther.	Reposition the fiber.
PLF, PLR, PRF, PRR	Theta axis moved too far over.	Reposition the fibers and try again.
