Lloyd Mirror Configuration - Angle Calculator
Diagram
figure:

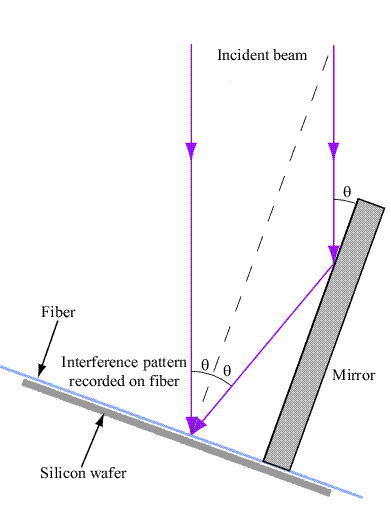

Half of the incident beam is focused directly onto the target while the other half reflects off of a mirror before reaching the target. The additional distance traveled by the reflected beam incurs a phase difference with the direct beam and creates a constructive/destructive interference pattern at the point of target. This interference patter is used to create grating periods in laser holography.
Calculate Lloyd Angle:
Incident Beam Wavelength:
[nm]
Desired Grating Period:
[nm]
Lloyd Mirror Angle:
[deg]
